Hy-Speed Servo SS DA Wrapper

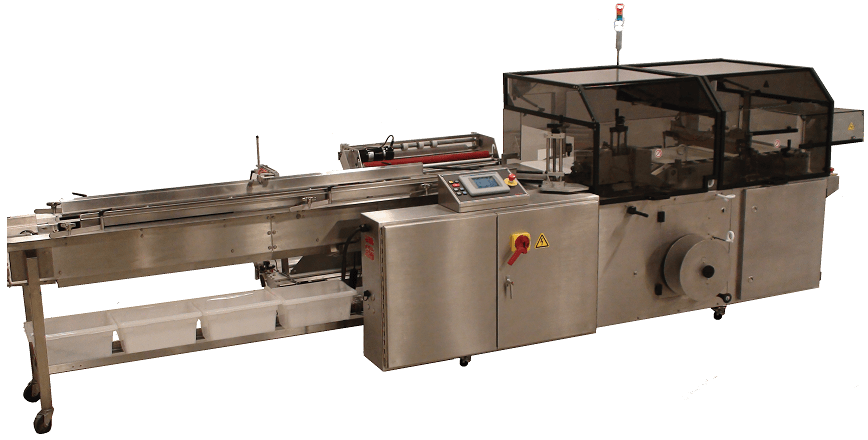

Shanklin® Hy-Speed Servo SS DA
SS (Side Seal) DA (Stainless Steel Construction
With Removable Washdown Infeed)



memo

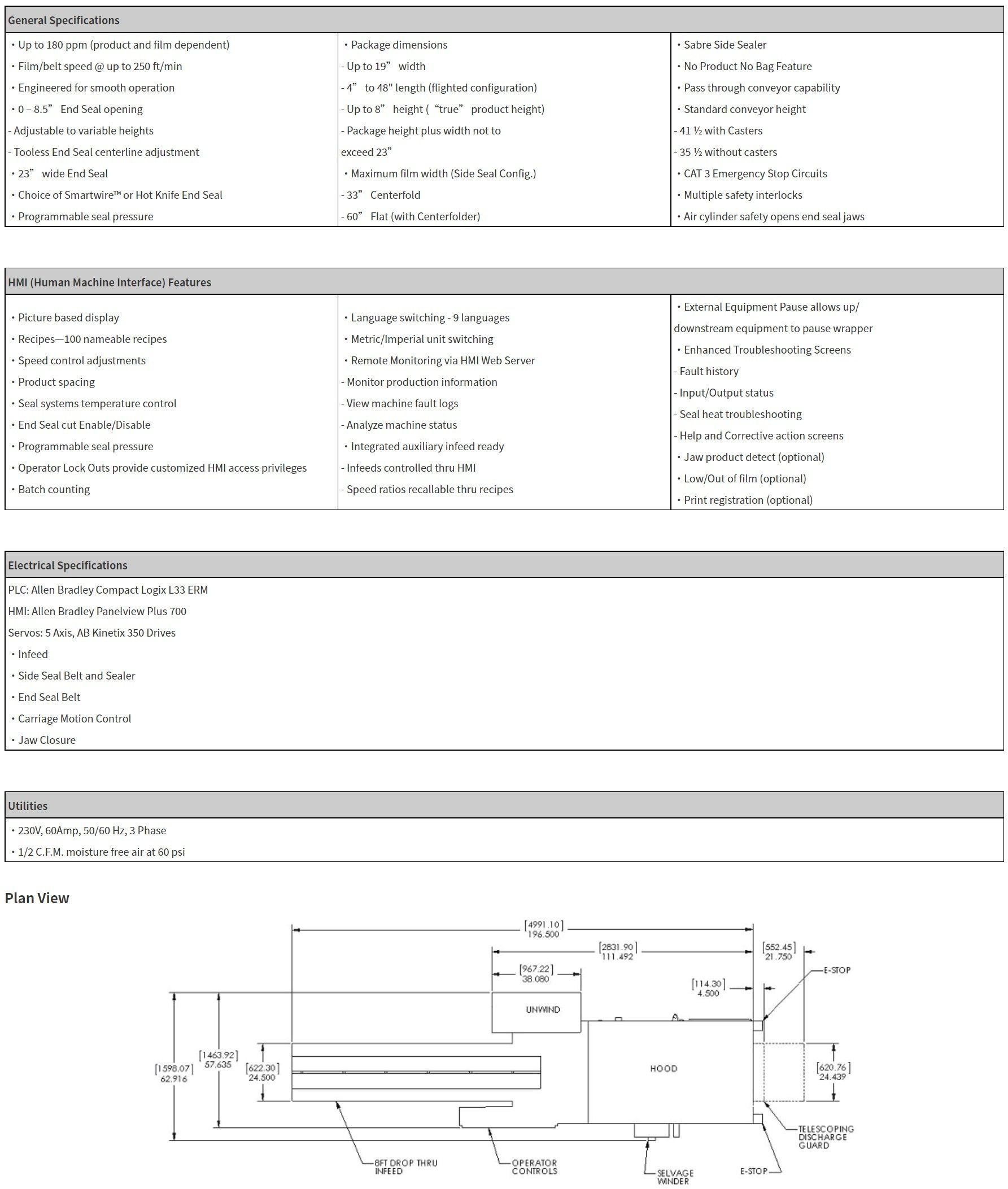

General Specifications
•Up to 180 ppm (product and film dependent)
•Film/belt speed @ up to 250 ft/min
•Engineered for smooth operation
•0 – 8.5” End Seal opening
- Adjustable to variable heights
- Tooless End Seal centerline adjustment
•23” wide End Seal
•Choice of Smartwire™ or Hot Knife End Seal
•Programmable seal pressure

•Package dimensions
- Up to 19” width
- 4” to 48" length (flighted configuration)
- Up to 8” height (“true” product height)
- Package height plus width not to
exceed 23”
•Maximum film width (Side Seal Config.)
- 33” Centerfold
- 60” Flat (with Centerfolder)

•Sabre Side Sealer
•No Product No Bag Feature
•Pass through conveyor capability
•Standard conveyor height
- 41 ½ with Casters
- 35 ½ without casters
•CAT 3 Emergency Stop Circuits
•Multiple safety interlocks
•Air cylinder safety opens end seal jaws



HMI (Human Machine Interface) Features
•Picture based display
•Recipes—100 nameable recipes
•Speed control adjustments
•Product spacing
•Seal systems temperature control
•End Seal cut Enable/Disable
•Programmable seal pressure
•Operator Lock Outs provide customized HMI access privileges
•Batch counting

•Language switching - 9 languages
•Metric/Imperial unit switching
•Remote Monitoring via HMI Web Server
- Monitor production information
- View machine fault logs
- Analyze machine status
•Integrated auxiliary infeed ready
- Infeeds controlled thru HMI
- Speed ratios recallable thru recipes

•External Equipment Pause allows up/
downstream equipment to pause wrapper
•Enhanced Troubleshooting Screens
- Fault history
- Input/Output status
- Seal heat troubleshooting
- Help and Corrective action screens
•Jaw product detect (optional)
•Low/Out of film (optional)
•Print registration (optional)



Electrical Specifications
PLC: Allen Bradley Compact Logix L33 ERM
HMI: Allen Bradley Panelview Plus 700
Servos: 5 Axis, AB Kinetix 350 Drives
•Infeed
•Side Seal Belt and Sealer
•End Seal Belt
•Carriage Motion Control

•Jaw Closure


Utilities
•230V, 60Amp, 50/60 Hz, 3 Phase
•1/2 C.F.M. moisture free air at 60 psi

Plan View
